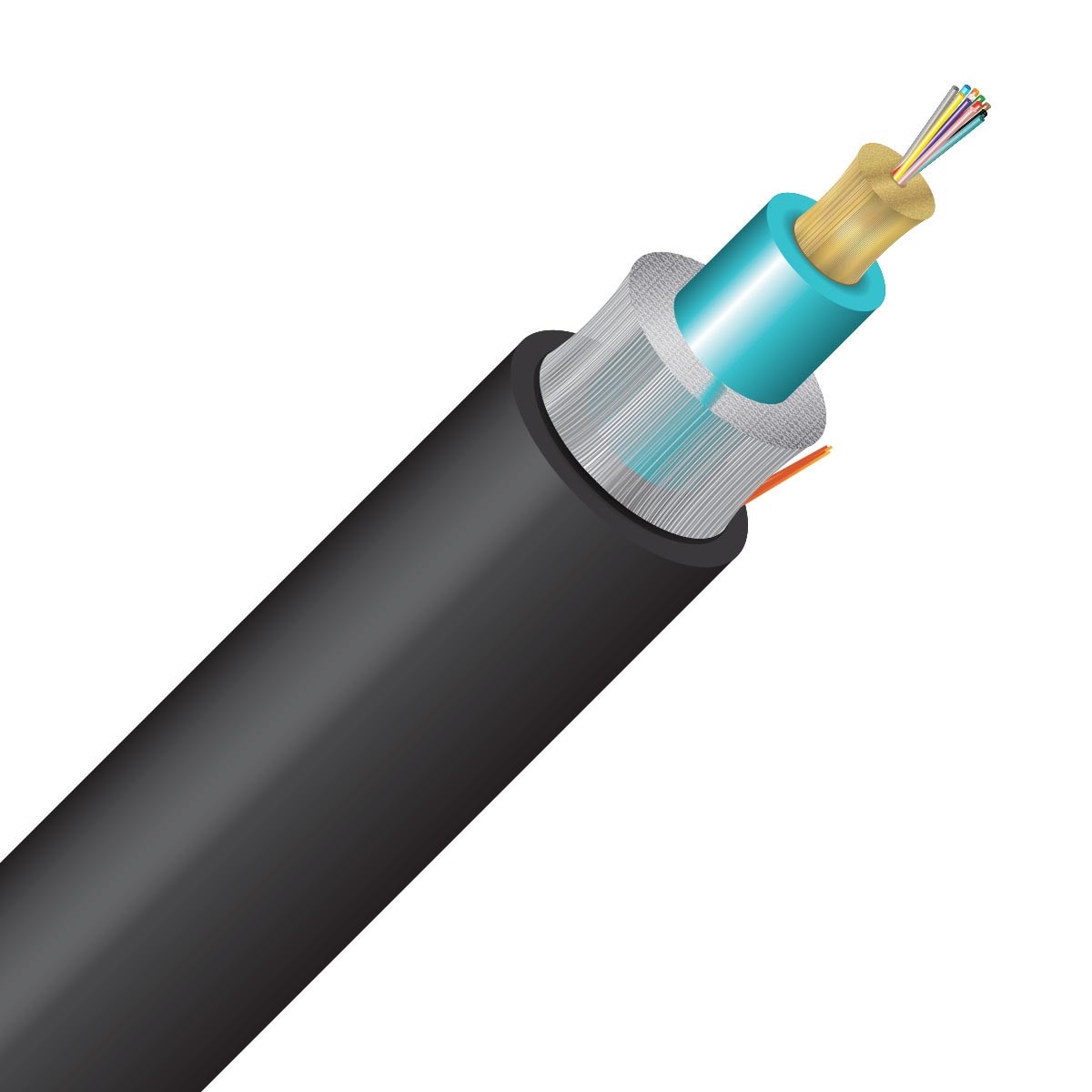

Cleerline 12RMD50125OM3R 12 Strand SSF™ Rugged Micro-Distribution LT, Riser I/O, 50/125, OM3 Per 1000ft Spool

Cleerline 12RMD50125OM3R 12 Strand SSF™ Rugged Micro-Distribution LT, Riser I/O, 50/125, OM3 Per 1000ft Spool

Product Details

Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.

Cleerline Rugged Micro-Distribution Cables are the perfect solution for harsh indoor and outdoor environments. A weather-rated thickened jacket and added fiberglass yarns protect against water, abrasion, UV and rodents. Plus, the cable's loose tube construction with internal 250μm sub-units ensure a flexible, low-profile installation in ducts, pipes and conduit.

Available in 2 to 12 strand counts, Cleerline Rugged Micro-Distribution Cables are riser-rated for both interior and exterior above-ground installation.

Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.

Features

• 2 - 12 multimode fiber optic strands
• Available in multimode OM3 and multimode OM4
• Loose tube micro-distribution ( 250μm sub-units) construction
• Constructed of premium SSF fiber
• Riser indoor/outdoor rated
• Jacket provides protection from water, UV, abrasion and temperature fluctuations
• Rodent resistant thickened jacket with additional layer of fiberglass yarns
• Black jacket color
• 6.1mm overall low-profile diameter
• Ideal for installation above-ground or below ground in pipe, conduit or duct
• Ideal for installation in exposed trays
• Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
• Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations
• Delivers an industry-leading 2.2mm minimum bend radius with a 50+ year life expectancy
• Provides a 2000x greater flex cycle rating and 1500x better impact rating than traditional bend-insensitive fiber
• Available in Made-in-USA and TAA-compliant constructions
• 100% compatible with all standard fiber cable management and connectivity products
• Sequential foot markings on jacket
• Custom configurations and constructions available upon request

Downloads

Spec Sheet
