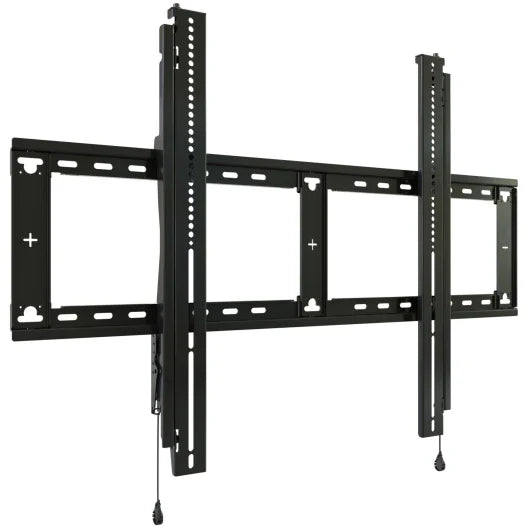

Chief RXF3 Extra-Large Fit Fixed Display Wall Mount for 49"-98" TV
Product Details
The Fit series RXF3 is an extra-large fixed display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5” (38 mm) low-profile depth, and UL and TUV safety standard approvals.
Features
- Low profile 1.5” (38 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 960 x 650 mm
- Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security option (not included)
- UL and TUV safety standards compliant
Specifications
| Category | Feature | Specification |
| Dimensions | Overall Dimensions | 27.05” x 38” x 1.5” (687 x 965 x 39 mm) |
| Height | 27.05 in (68.7 cm) | |
| Width | 38 in (96.5 cm) | |
| Depth (Standard/Minimum) | 1.5 in (3.8 cm) | |
| Manual Height Adjustment | 0.75 in (19.1 mm) | |
| Capacity | Weight Capacity | 250 lbs (113.4 kg) |
| Typical Screen Size | 49" - 98" (1245mm - 2489mm) | |
| Wall Stud Compatibility | Triple 16" (406 mm) | |
| Shipping Weight | 18.04 lbs (8.2 kg) | |
| Compatibility | VESA Mounting Pattern | 100 x 100 mm up to 960 x 650 mm |
| Orientation | Landscape | |
| Solution Type | Universal | |
| Physical Info | Adjustability | Fixed |
| Color | Black | |
| Application | Wall | |
| UPC | 841872176680 | |
| Compliance | Certifications | TUV, UL Listed |
| TAA Compliant | No |
