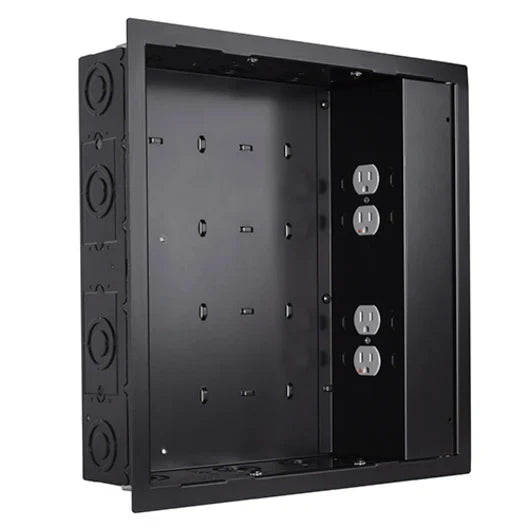

Chief PAC526FBP4 Proximity® In-wall Storage Box with 4 Receptacle Filter & Surge
Product Details
The PAC526FBP4 simplifies flat panel installation by providing an organized, recessed space for routing excess cables. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability.
Includes a high-performance, dual gang housing, isolated ground, 4-receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
Compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall™, and Fusion® wall mounts.
Output: 15A, 1875 W continuous
Power Requirements
- N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C
- Power Consumption: >0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N
Specifications
| Dimensions | Depth | 3.88 in (9.9 cm) |
| Height | 15.51 in (39.4 cm) | |
| Width | 15.4 in (39.1 cm) | |
| Overall Dimensions | 15.51" x 15.4" x 3.88” (394 x 391 x 98 mm) | |
| Weight | Shipping Weight | 15.23 lbs (6.9 kg) |
| Weight Capacity | 10 lbs (4.5 kg) | |
| Characteristics | Accessory Type | In-Wall Power |
| Application | In-Wall | |
| Color / Flange Color | Black | |
| Cover Color | None | |
| Receptacle Type | Four Surge and Filter | |
| Features | Special Features | Flanges, Surge and Filtering |
| TAA Compliant | No | |
| UPC | 841872167077 | |
| Compliance | Certifications | UL Listed |
