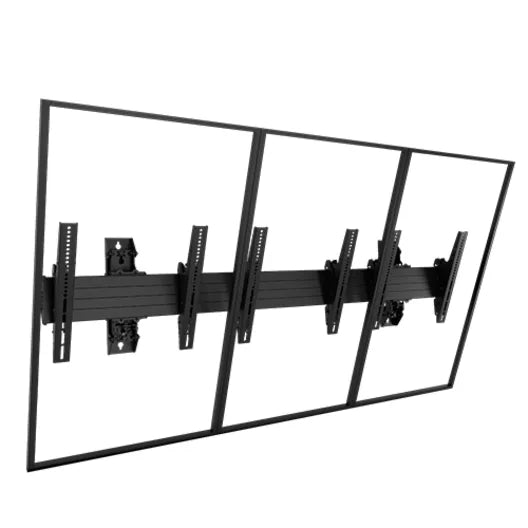

Chief LWM3X1UP Fusion® Large 3X1 Menu Board Mount, Portrait
Product Details
Fusion® Menu Board Wall Mounts offer perfect display positioning and flexible adjustments. The single horizontal extrusion with depth adjustment aligns the screens quickly even on irregular mounting surfaces and allows easy access behind the displays for servicing.
Features
- Single horizontal extrusion keeps screens aligned
- ControlZone™ micro-height adjustment
- Centris® tilt between +0 and -20 degrees
- Tool-free screen engagement
- Portrait and landscape options for 2x1 and 3x1 configurations
- Landscape for 4x1 and 5x1 configurations
- Accomodates most 40-55" screens; check compatibility for accessory needs
- Optional padlock security
- Full line of accessories that work across Fusion® wall, ceiling and freestanding lines
Specifications
| Category | Feature | Specification |
| Dimensions & Measurements | Overall Dimensions | 32.5" x 68.8" x 5.8" (826 x 1748 x 147 mm) |
| Width | 68.8 in (174.8 cm) | |
| Height | 32.5 in (82.6 cm) | |
| Depth | 8 in (20.3 cm) | |
| Minimum Depth | 5.8 in (14.7 cm) | |
| Shipping Weight | 84 lbs (38.1 kg) | |
| Weight Capacity | 125 lbs (56.7 kg) | |
| Characteristics & Features | Adjustability | Height Adjustable, Lateral Shift, Tilt |
| Application | Wall | |
| Array Configuration | 3x1 | |
| Color | Black | |
| Number of Displays | 3 | |
| Orientation | Portrait | |
| Post-Installation Leveling | Dependent upon wall spacing | |
| Solution Type | Universal | |
| Special Features | Multi-Display | |
| TAA Compliant | No | |
| Tilt Range | +0° / -20° | |
| UPC | 841872166599 | |
| Certifications & Warranty | Certifications | UL Listed |
