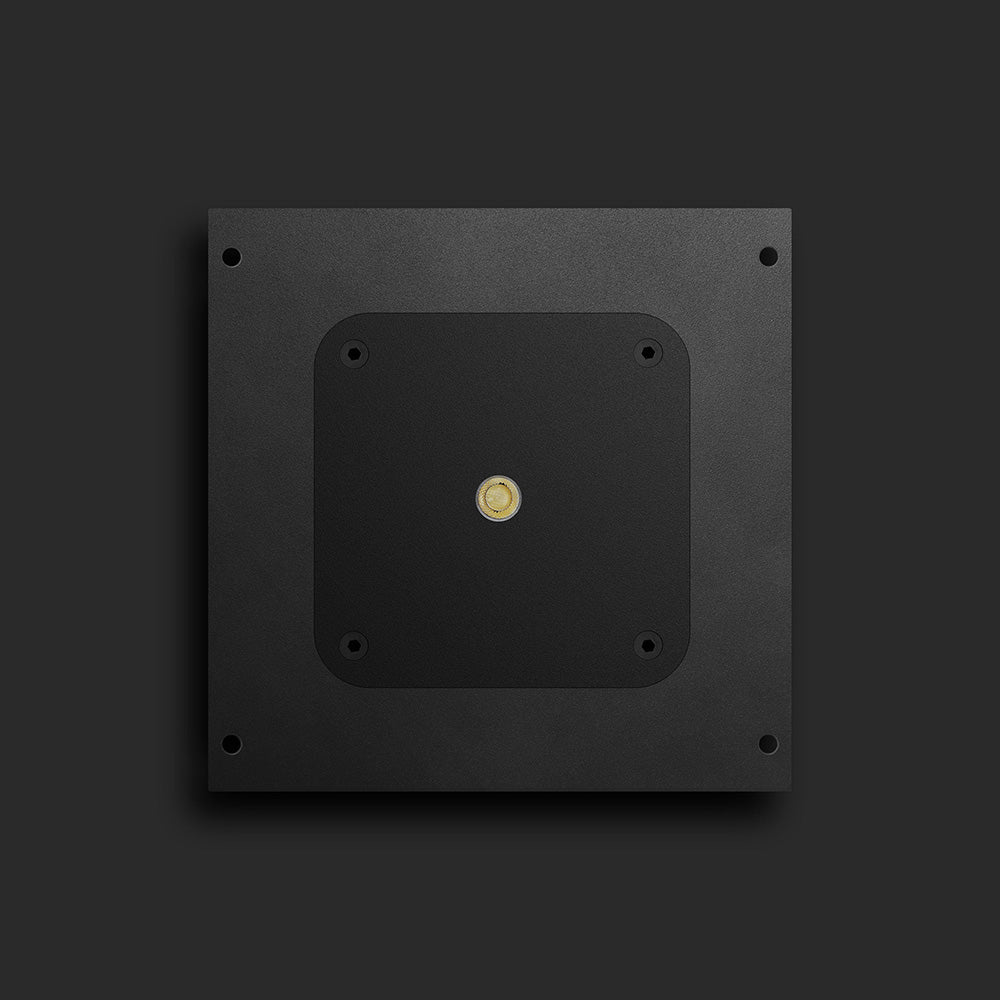

Apure Minus One 3/8" LED Downlight 2700k 40 Degree Flood AM11F2790A MLV Dim

Apure Minus One 3/8" LED Downlight 2700k 40 Degree Flood AM11F2790A MLV Dim

Product Details

The MINUS ONE downlight brings sophistication to interior spaces with its never-before-seen performance. A

single high performance LED is combined with precision-focusing optics to create an unprecedented light fixture.

The high-tech design features a perfectly round 10 mm (3/8′′) aperture in either a 20 or 40 degree beam spread

and includes various dimming protocols, each fully compatible with all major architectural lighting control systems.

Features

Construction

• Extruded aluminum fixture body

• 50,000 hours LED lifetime

• Approximate fixture weight: 636g (1.41lbs)

• Operating Temperature: 10ºC to 50ºC

Fixture Size

• Visible Aperture: ø10mm (ø3/8”)

• Recess Depth: 19mm (3/4”)

• Heat Sink: 120mm x 120mm (4 - 3/4” x 4 - 3/4”)

Light Output

• High performance Cree LED, available in various color temperatures

• 1000lm source light output, 652lm max delivered light output

• 2-step SDCM ellipse

• Color rendering index (CRI) min. 90

• Integral microprocessor controlled thermal protection

Electrical Specifications

24V DC Constant Voltage Input (Class 2, 12W Power Consumption)

• 96W 24V DC Power Supply Required (powers up to 4 fixtures)

• Magnetic Low Voltage (MLV) Dimming (or) 3-Wire Lutron Hi-Lume dimming protocols

• Recommended wire, min. 16 AWG plenum rated (CMP, when required) up to 150ft from remote transformer

Constant Current 1000mA 12V DC Input (Class 2, 12W Power Consumption)

• Remote 1000mA Constant Current Driver Required

• 0-10V 0.1% Dimming (or) 1-10V/Push/DALI (or) Phase Dimming drivers available

• Recommended wire, min. 16 AWG plenum rated (CMP, when required) up to 82ft from remote transformer

Installation Types

• Drywall installation for new construction and retrofit installations possible with the Universal Drywall Bracket,

available for various drywall thicknesses.

• Custom installations for wood, metal and stone ceilings. Requires shop drawings available per request by Apure.

• The Minus series is not suitable for installation within steam rooms or saunas!

Listings

• UL Listed, CE Conform

• Suitable for dry, damp and wet locations, standard IP43, IP66 (upon request)

• Type IC Rated, Plenum Rated, Airtight Rated
