WPTV248ULCB 24VAC,3.5A,8 PTC UL OUTDOOR PS

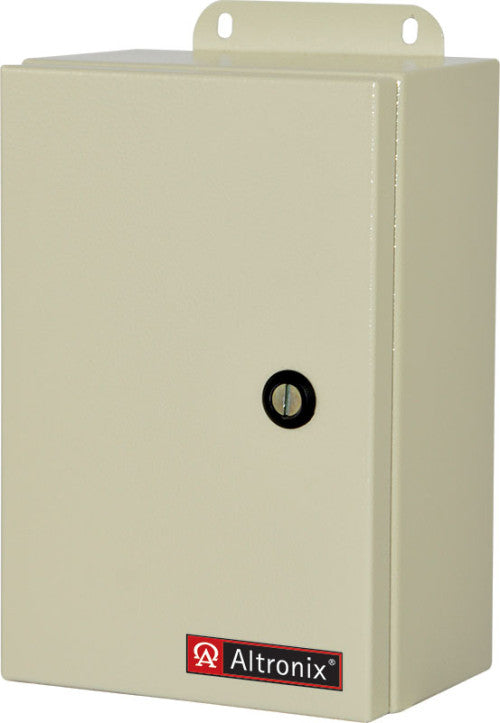

Altronix WPTV248ULCB provides 24VAC or 28VAC distributed via eight (8) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters, and other video accessories.
Input
115VAC, 50/60Hz, 0.9A.
Output
Eight (8) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
24VAC @ 3.5A (85VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 3A (85VA) supply current (0.375A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
NEMA 4 Rated enclosure for outdoor use.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 43 BTU/Hr.
System AC input VA requirement: 103.5VA.
