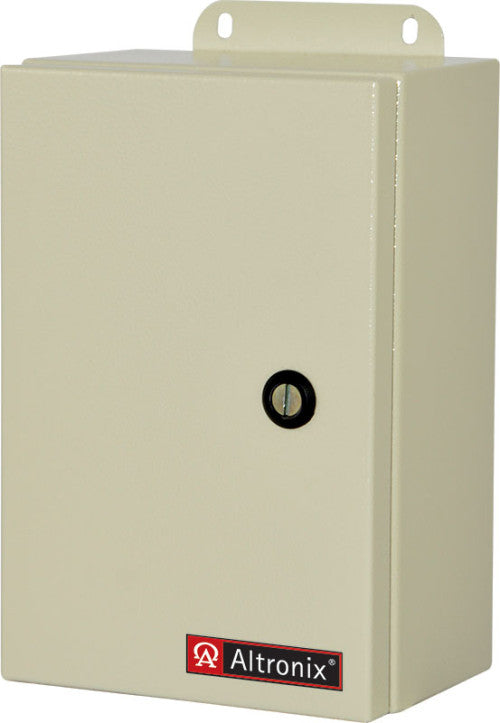

WPTV248UL 24VAC,3.5A,8 FSE UL OUTDOOR PS
Altronix WPTV248UL provides 24VAC or 28VAC distributed via eight (8) fuse protected power limited outputs for powering CCTV Cameras, heaters, and other video accessories.
Input
115VAC, 50/60Hz, 0.9A.
Output
Eight (8) fuse protected outputs.
24VAC @ 3.5A (85VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 3A (85VA) supply current (0.375A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
NEMA 4 Rated enclosure for outdoor use.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 43 BTU/Hr.
System AC input VA requirement: 103.5VA.
