WPTV248300ULCB 24AC@12.5A/28AC@10A,8PTC,UL,OU

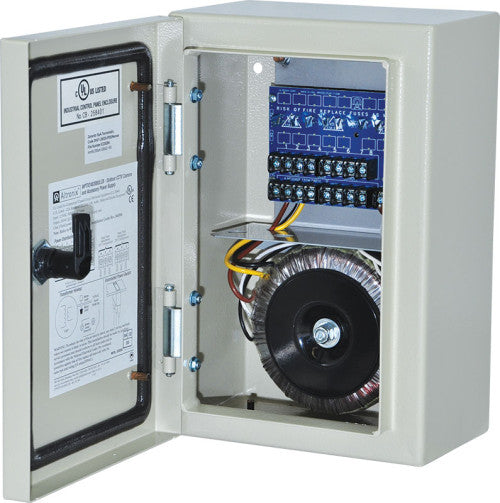

Altronix WPTV248300ULCB outdoor CCTV Power Supply provides power via eight (8) PTC protected Class 2 rated power-limited outputs for CCTV Cameras, heaters, and other video accessories.
Input
115VAC, 50/60Hz, 2.7A.
Output
Eight (8) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
24VAC @ 12.5A (300VA) supply current or 28VAC @ 10A (175VA) supply current.
Outputs are rated @ 2.5A.
Surge suppression.
Features
Secondary fuse rated @ 5A/250V.
Unit maintains camera synchronization.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
NEMA 4 Rated enclosure for outdoor use.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 154 BTU/Hr.
System AC input VA requirement: 202.4VA.
