Altronix WPTV248175ULCB 24AC@7A,28AC@6.25A,8PTC,UL,OUT
Highlight title
Text to highlight a key feature of your product
Description
Description
WPTV248175ULCB 24AC@7A,28AC@6.25A,8PTC,UL,OUT

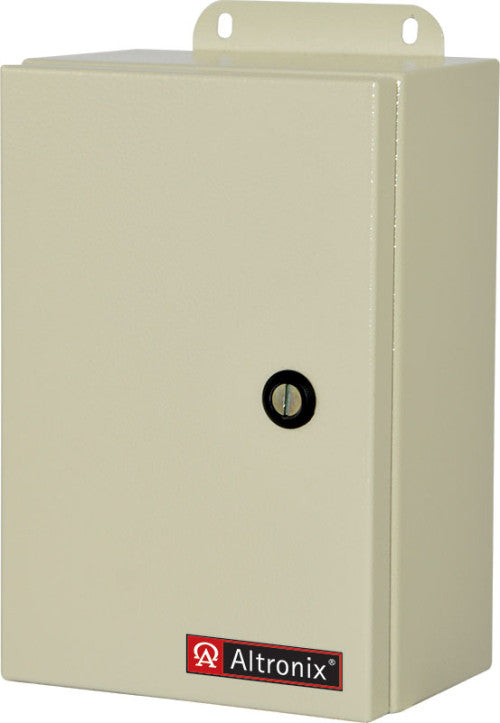

Altronix WPTV248175ULCB outdoor CCTV Power Supply provides power via eight (8) PTC protected protected Class 2 Rated power-limited outputs for CCTV cameras, heaters, and other video accessories.
Input
115VAC, 50/60Hz, 1.76A.
Output
Eight (8) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
24VAC @ 7A (170VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 6.25A (175VA) supply current (0.375A per device, 3.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
NEMA 4 Rated enclosure for outdoor use.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 89 BTU/Hr.
System AC input VA requirement: 202.4VA.
