Altronix WAYPOINT7 12/24VDC @ 6A, NEMA 4/4X, 115V

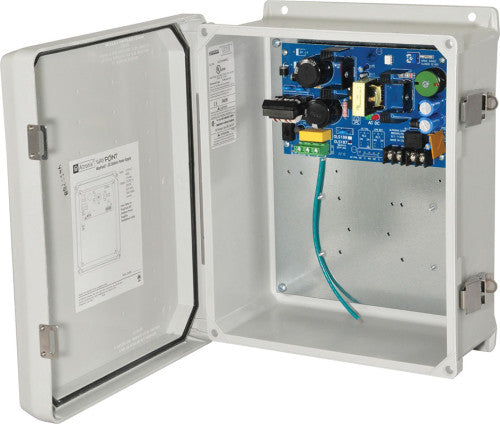

WAYPOINT7 12/24VDC @ 6A, NEMA 4/4X, 115V Altronix WayPoint7 DC Outdoor Power Supply/Charger provides 12VDC or 24VDC and is designed to be conveniently located where power is required. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting. Input 115VAC, 60Hz, 1.9A. Output 12VDC or 24VDC selectable output. 6A continuous supply current. Filtered and electronically regulated output. Thermal overload and short circuit protection. Features AC and DC power LED indicators. Ease of installation saves time and eliminates costly labor. Includes battery leads. Battery Charging Capacity: 12VDC/7AH (1 or 2 within enclosure); Up to 40AH/65AH (Separate ventilated enclosure is required) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Temperature Operating: - 40° C to 60° C (-40° F to 140° F). Storage: - 40° C to 70° C (-40° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 37 BTU/Hr. 24VDC: 74 BTU/Hr. System AC input VA requirement: 218.5VA.
