Altronix WAYPOINT562 48VDC@2A, BAT CHARGE, NEMA4/4X

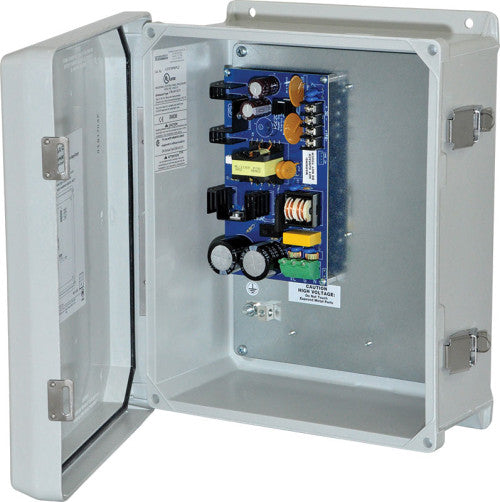

WAYPOINT562 48VDC@2A, BAT CHARGE, NEMA4/4X Altronix WayPoint562 provides 120W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 2.2A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting. Input 115VAC, 60 Hz, 2.5A or 230VAC, 50Hz, 1.3A. Output 56VDC/120W output. 2.2A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Electrical Operating Ambient Temperature: - 20ºC to 50ºC. System AC input VA requirement: 300VA. Battery Charging Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Separate ventilated enclosure is required Temperature Operating Temperature: 60W: -40ºC to 75ºC (-40ºF to 167ºF); 75W: -40ºC to 70ºC (-40ºF to 158ºF); 100W: -40ºC to 55ºC (-40ºF to 131ºF), 120W: -40ºC to 45ºC (-40ºF to 113ºF). Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF). Relative humidity: 85%, +/- 5%. BTU/Hr. (approx.): 72 BTU/Hr.
