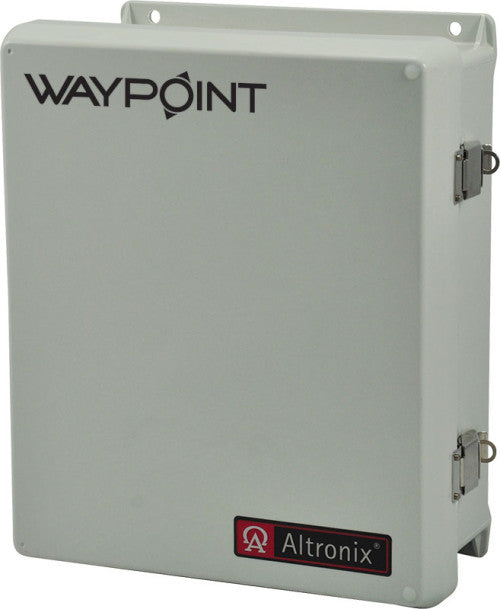

Altronix WAYPOINT30AU 24/28AC@12.5/10A, NEMA 4/4X
Altronix WAYPOINT30AU 24/28AC@12.5/10A, NEMA 4/4X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix WAYPOINT30AU 24/28AC@12.5/10A, NEMA 4/4X
Highlight title
Text to highlight a key feature of your product
Description
Description
WAYPOINT30AU 24/28AC@12.5/10A, NEMA 4/4X
WayPoint30AU Outdoor Power Supply provides 24VAC and/or 28VAC distributed via two (2) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.
Input
Input: 115VAC, 50/60Hz, 3.0A or 230VAC, 50/60Hz, 1.5A.
Output
Output options:
a. 24VAC @ 12.5A max.
b. 28VAC @ 10A max.
c. Both 24VAC and 28VAC not to exceed 10A max.
Output fuses rated @ 10A/32V.
Visual Indicators
Individual power output LED indicators.
Illuminated master power switch.
Temperature
Operating Temperature:
24VAC @ 12.5A output: -40° C to 60° C (-40° F to 140° F).
28VAC @ 10A output: -40° C to 70° C ( -40° F to 158° F).
Storage Temperature: -20° C to 75° C (-4° F to 167° F).
Relative Humidity: 85%, +/- 5%.
BTU/Hr. (approx.): 154 BTU/Hr.
System AC input VA requirement: 345VA.
Operating Altitude
- 1000 to 6,561.679 ft. ( -304.8 to 2000m).
