WAYPOINT30A 24/28AC @ 12.5/10A, NEMA 4/4X,

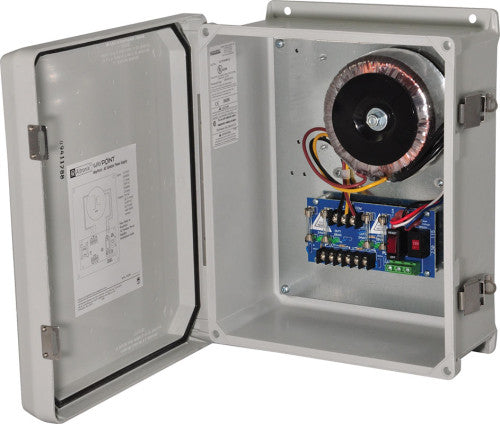

WayPoint-30A Outdoor Power Supply provides 24VAC and/or 28VAC distributed via one or two output(s) for powering CCTV Cameras, heaters and other video accessories.
Input
Input: 115VAC, 50/60Hz, 3.5A or 230VAC, 50/60Hz, 2.0A.
Output
Output options:
a. 24VAC @ 12.5A max.
b. 28VAC @ 10A max.
c. Both 24VAC and 28VAC not to exceed 10A max.
Output fuses rated @ 15A 32V.
Features
Individual power output LEDs.
Illuminated master power switch.
Spare fuses included.
Temperature
Operating Temperature: - 20º C to 50º C ( -4º F to 122º F).
Storage Temperature: -40ºC to 70ºC ( -40ºF to 158ºF).
Relative Humidity 85% +/- 5%.
System AC input VA requirement:
115VAC: 402.5VA.
230VAC: 460VA.
