WAYPOINT17ADU 24/28AC@7.25/6.25A, NEMA 4/4X

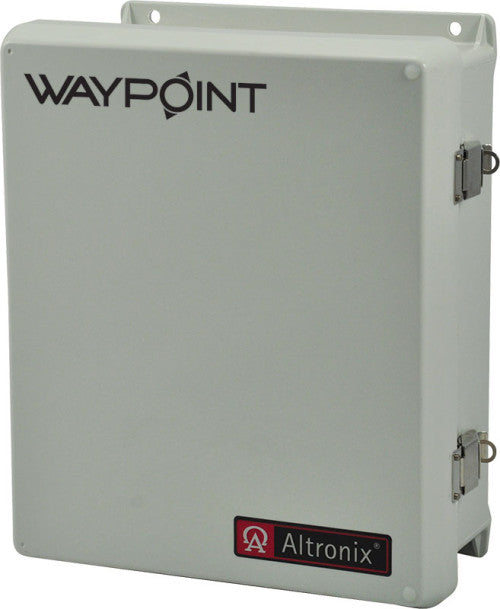

Altronix WayPoint17ADU Outdoor Power Supply provides 24VAC and/or 28VAC distributed via two (2) Class 2 Rated PTC protected power-limited outputs for powering CCTV Cameras, heaters, and other video accessories.
Input
Input: 115VAC, 50/60Hz, 2.0A or 230VAC, 50/60Hz, 1.0A.
Output
Output options:
a. 24VAC @ 7.25A max.
b. 28VAC @ 6.25A max.
c. Both 24VAC and 28VAC not to exceed 6.25A max.
Output PTCs rated @ 2.5A.
Visual Indicators
Individual power output LED indicators.
Illuminated master power switch.
Temperature
Operating Temperature:
24VAC @ 7.25A output: - 40° C to 60° C ( - 40° F to 140° F);
28VAC @ 6.25A output: - 40° C to 70° C ( - 40° F to 158° F).
Storage Temperature: - 40° C to 75° C (-40° F to 167° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.): 90 BTU/Hr.
System AC input VA requirement: 230VA.
Operating Altitude
- 304.8 to 2000m ( - 1000 to 6,561.679 ft.).
