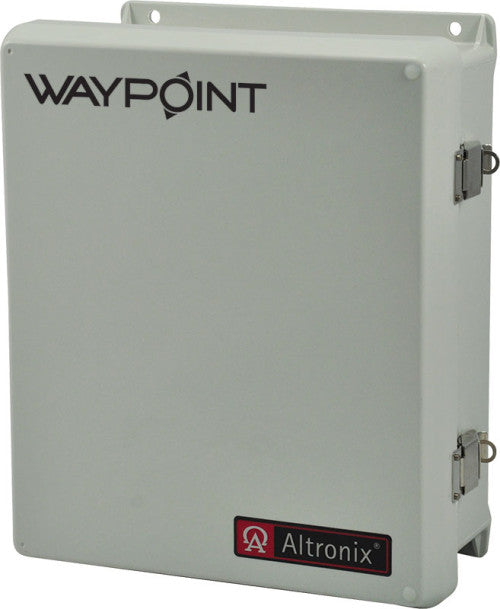

Altronix WAYPOINT17A8U 8OUT/24/28AC@7.25/6.25A,NEMA4X
Altronix WAYPOINT17A8U 8OUT/24/28AC@7.25/6.25A,NEMA4X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix WAYPOINT17A8U 8OUT/24/28AC@7.25/6.25A,NEMA4X
Highlight title
Text to highlight a key feature of your product
Description
Description
WAYPOINT17A8U 8OUT/24/28AC@7.25/6.25A,NEMA4X
WayPoint17A8U Outdoor Power Supply provides 24VAC or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.
Input
Input: 115VAC, 50/60Hz, 2.0A or 230VAC, 50/60Hz, 1.0A.
Output
Output options:
a. 24VAC @ 7.25A max.
b. 28VAC @ 6.25A max.
Output fuses rated @ 5A/32V.
Visual Indicators
Individual power output LED indicators.
Illuminated master power switch.
Temperature
Operating Temperature:
24VAC @ 7.25A output: - 40° C to 60° C ( - 40° F to 140° F).
28VAC @ 6.25A output: - 40° C to 70° C ( - 40° F to 158° F).
Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
Relative Humidity: 85%, +/- 5%.
BTU/Hr. (approx.): 90 BTU/Hr.
System AC input VA requirement: 230VA.
Operating Altitude
- 304.8 to 2000m ( - 1000 to 6,561.679 ft.).
