Altronix WAYPOINT102 PWR SPLY 12VDC @ 10A,OUT ENCL

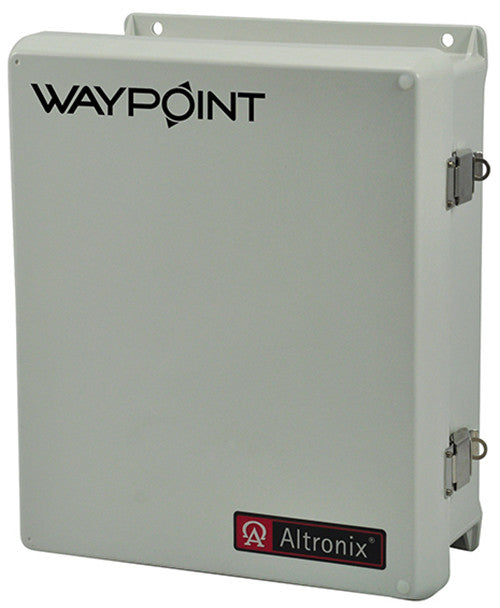

WAYPOINT102 PWR SPLY 12VDC @ 10A,OUT ENCL Altronix WayPoint102 DC Outdoor Power Supply/Charger provides 12VDC and is designed to be conveniently located where power is required. It also offers a suite of features that includes output disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting. Input Voltage: 120VAC, 60Hz, 3.5A max. Fusing: 5A/250V. Output Voltage: 12VDC. Current: 10A continuous max. Auxiliary: Power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 12VDC/7AH (1 or 2 within enclosure); Up to 40AH/65AH (Separate ventilated enclosure is required) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators (LED) Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. Temperature Operating - 40° C to 60° C (-40° F to 140° F). Storage - 40° C to 70° C (-40° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/Hr.
