VERTILINE48MDV 16 PTC OUT 48VDC @ 6.5A 220V
Product Details

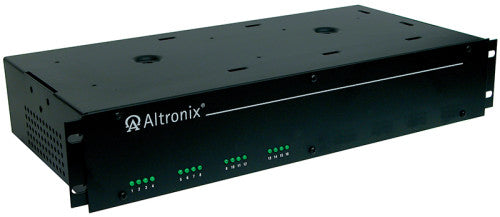

Altronix Vertiline48MDV Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated 56VDC power outputs in a space saving 2U EIA 19” rack mount chassis.
Specifications
Input
Voltage: 220VAC, 50/60Hz, 3A.
Output
Voltage: 56VDC.
Current: 6.5A max. total supply current.
PTC: Individual outputs’ PTCs rated @ 2.5A
Other: Short circuit and thermal overload protection. Filtered and regulated.
Indicators (LED)
Master: Illuminated master power disconnect circuit breaker with manual reset.
Output: Sixteen (16) individual LEDs.
Temperature
Operating: 0º C to 49º C (32º F to 120º F).
Storage: - 20º C to 70º C ( - 4º F to 158º F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
186 BTU/Hr.
