Altronix TLM400K1D ALTX/LIFTMAST 4DR/4A/PTC/115V

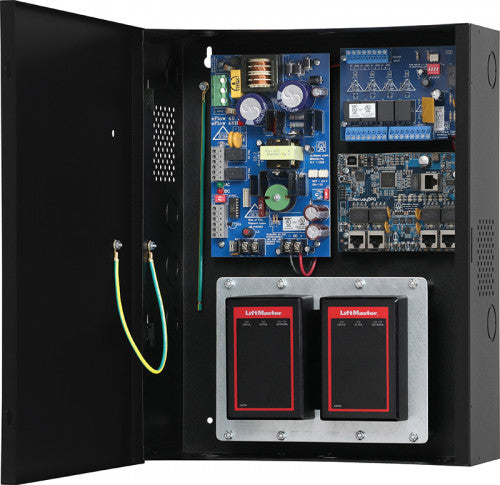

TLM400K1D ALTX/LIFTMAST 4DR/4A/PTC/115V Altronix TLM400K1D consists of TM400 enclosure with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger and four (4) PTC protected output access control module and 5-Port PoE Hardened Switch. This kit also accommodates LiftMaster Smart Access 2-Door Controller (CAP2D) modules for up to four (4) doors in a single enclosure. One (1) LMBK2 mounting bracket for LiftMaster CAP2D is factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow4NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 3.5A. Input Fuse: 5A/250V Output Voltage: 24VDC. Current: 4A continuous. Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: Up to 40AH/65AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. ACM4CB Access Power Controller Input Voltage: 12VDC or 24VDC from AL600ULXB. Input PTC: 9A. Outputs Voltage: 24VDC. Four (4) independently controlled PTC outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs; Form “C” Relays rated 28VAC or VDC @ 2.5A b) Auxiliary power outputs (unswitched). c) Any combination of the above. Outputs Ratings PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. NetWay5P 5-Port PoE+ Hardened Switch Input Power 12 or 24VDC from eFlow4NTB Power Output Maximum Power: Four (4) 10/100/1000 Mbps, PoE/PoE+ (rated up to 30W) ports, 60W (at 12VDC) or 120W (at 24VDC) total power, Integral surge protection Uplink Port: Single data port Ethernet Ports: Five (5) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5 or better structured cable. Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100Base-T/active LEDs for each port. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 90 BTU/Hr.
