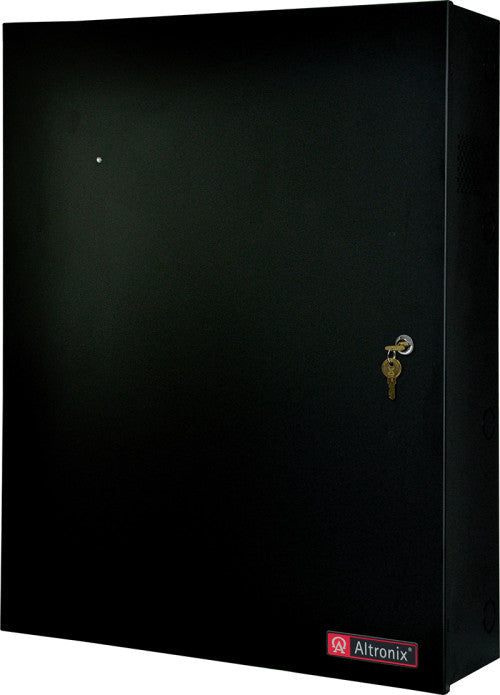

Altronix T3SSK75F28D TROVE3SS3, S2 28-DR, PTC

T3SSK75F28D TROVE3SS3, S2 28-DR, PTC Altronix T3SSK75F28D consists of a high-capacity enclosure with removable backplane, providing 12VDC @ 24VDC at 20A total for up to twenty-eight (28) locking devices or accessories. This unit easily combines Altronix power/accessories with various combinations of S2 boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs. eFlow104NB Power Supply/Charger - 1 Input Voltage: 120VAC, 60Hz, 4.5A max. Main Fuse: 6.3A / 250V. Output Voltage: 24VDC @ 10A total. Auxiliary: One (1) Aux outputs rated 1A (unswitched) each. Protection: Overvoltage protection. Filtered and regulated. eFlow102NB Power Supply/Charger - 2 Input Voltage: 120VAC, 60Hz, 3.5A max. Main Fuse: 5A / 250V. Output Voltage: 12VDC @ 10A. Auxiliary: One (1) Aux outputs rated 1A (unswitched) each. Protection: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging: Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. Three (3) ACM8CB Access Power Controllers Input Voltage: 24VDC from eFlow104NB. Input Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled PTC outputs for each ACM8CB and Four (4) 24VDC independently controlled PTC outputs for ACM4CB: a) Fail-Safe and/or Fail-Secure power outputs. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. ACM4CB Access Power Controller Input Voltage: 24VDC from eFlow104NB Input Fuse: 10A/32V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled PTC outputs for each ACM8CB and Four (4) 24VDC independently controlled PTC outputs for ACM4CB: a) Fail-Safe and/or Fail-Secure power outputs. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output PTCs: 2.5A. Indicators LED Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Two (2) PD16WCB Power Distribution Modules Input Voltage: 12VDC from eFlow102NB. Outputs Voltage: 12VDC. Output PTCs: 2.5A. Indicators LED Green LED: DC Output. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 289 BTU/Hr.
