Altronix T3SK7516DV TROVE3SH3/16DR/ULX/PTC/220V

Product Details

T3SK7516DV TROVE3SH3/16DR/ULX/PTC/220V

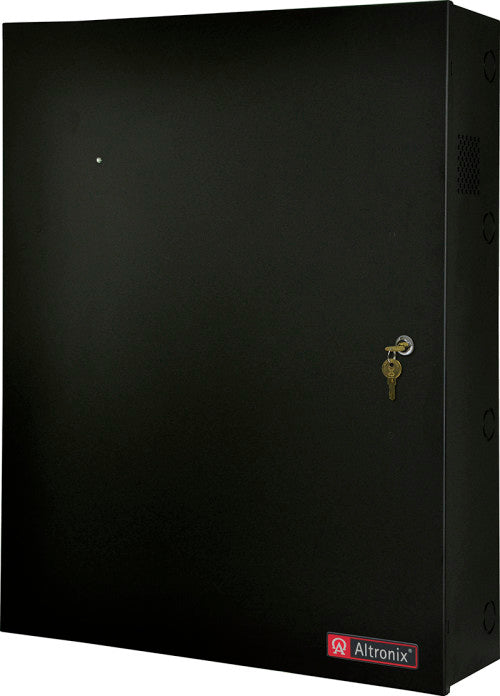

Altronix T3SK7516DV kit consists of Trove3 enclosure and TSH3 Software House/Altronix backplane with 24VDC @ 10A and 12VDC @ 10A power supply/chargers, two (2) eight (8) PTC protected output access control module and eight (8) PTC protected output power distribution module. This kit also accommodates various combinations of Software House boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. AL1024XB2V Power Supply/Charger - 1 Input Voltage: 220VAC (range 198VAC-256VAC), 50/60Hz, 2.5A. Fusing: 5A / 250V. Outputs Voltage: 24VDC. Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated. AL1012XB220 Power Supply/Charger - 2 Input Voltage: 220VAC (working range 198VAC-256VAC), 50/60Hz, 1.3A. Fusing: 5A / 250V. Output Voltage: 12VDC. Current: 10A @ 12VDC continuous max. Other: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 220VAC is present. DC Output: Powered. Battery: Discharged or not connected. PD8ULCB Power Distribution Module Input Voltage: 12VDC from AL1012XB220. Outputs Voltage: 12VDC. Output PTCs: 2.5A. Indicators (LED) Green LED: DC Output. Two (2) ACM8CB Access Power Controllers Input Voltage: 24VDC from AL1024XB2V. Input Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output PTCs: 2.5A Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 217 BTU/Hr.
