Altronix T3HWK7516DV TROVE3HW3/16DR/ULX/PTC/220

T3HWK7516DV TROVE3HW3/16DR/ULX/PTC/220

Product Details

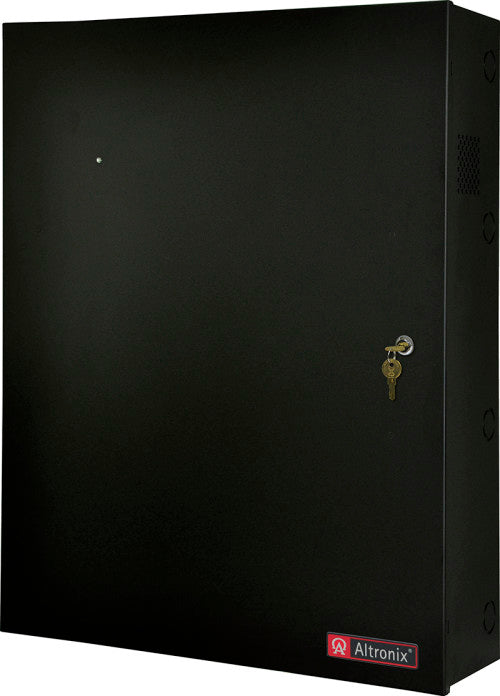

Altronix T3HWK7516DV kit consists of Trove3 enclosure, THW3 Honeywell/Altronix backplane and THWD2 Honeywell/Altronix door backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/chargers, two (2) 8-output PTC access power controllers and one (1) 8-output PTC power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches.
THW3 backplane also accommodates up to six (6) Honeywell 4200 Series or WIN-PAK Series boards and up to two (2) Honeywell PRO22MX8/PW5K1MX8 boards for up to sixteen (16) doors in a single enclosure. THWD2 accommodates additional one (1) Honeywell PRO22MX8/PW5K1MX8 and up to six (6) Honeywell 4200 Series or WIN-PAK Series.
Trove simplifies board layout and wire management, reduces installation time and labor costs. AL1024XB2V Power Supply/Charger - 1 Input Voltage: 220VAC (range 198VAC-256VAC), 50/60Hz, 2.5A. Fusing: 5A / 250V. Outputs Voltage: 24VDC. Current: 10A continuous supply current. Other: Overvoltage protection. Filtered and regulated. AL1012XB220 Power Supply/Charger - 2 Input Voltage: 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.1A. Fusing: 5A / 250V. Outputs Voltage: 12VDC. Current: 10A continuous supply current. Other: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging Capacity: 12AH/12VDC (2 within enclosure) 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 220VAC is present. DC Output: Powered. Battery: Discharged or not connected. PD8ULCB Power Distribution Module Input Voltage: 12VDC from AL1012XB220. Outputs Voltage: 12VDC. Eight (8) PTC protected outputs. 2.0A per output max. Output PTCs: 2.5A. Indicators (LED) Green LED: DC Output. Two (2) ACM8CB Access Power Controllers Input Voltage: 24VDC from AL1024XB2V. Input Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output PTCs: 2.5A Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 177 BTU/Hr.
