Product Details
T3DK77F24D ALT/DIN/24DR/PTC/220V

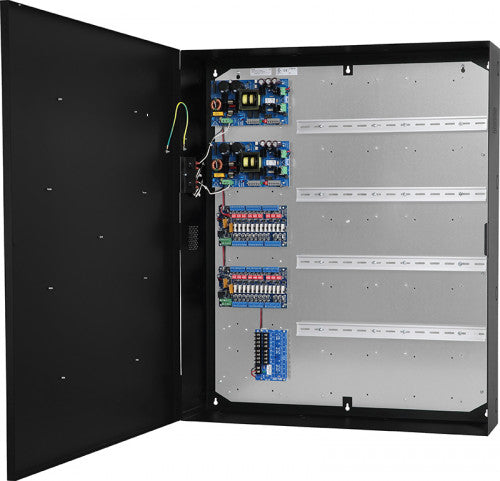

Altronix T2DK77F24 kit consists of Trove3 enclosure and TV3 Altronix/HID/DIN Rail backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) twelve (12) output PTC protected access control modules and one (1) eight (8) PTC protected power distribution module. This kit also accommodates any DIN Rail mountable products for up to twenty four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. Two (2) eFlow104NTB Power Supply/Chargers Input Voltage: 120VAC, 60Hz, 4.5A. Input Fuse: 6.3A/250V Output Voltage: 24VDC Current: 10A continuous Auxiliary: 1A (unswitched) Other: Overvoltage protection. Filtered and regulated Battery Charging Capacity: 12VDC/12AH (2 within enclosure), 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts Battery: Form “C” contacts Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge Indicators LED Input: 120VAC is present DC Output: Powered Battery: Discharged or not connected PD8ULCB Power Distribution Module Input Voltage: 12VDC from eFlow104NTB Outputs Voltage: 24VDC PTCs: 2.5A. Indicators LED Green LED: DC Output Two (2) ACMS12 Dual Input Access Power Controllers Input Voltage: 24VDC from eFlow104NTB Input PTCs: 9A. Outputs Voltage: 12VDC and/or 24VDC Twelve (12) independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched) c) Any combination of the above Outputs Ratings PTCs: 2.5A. Indicators (LED's) Red LEDs: Outputs are triggered (relays energized) Green LED: FACP disconnect is triggered Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F) Storage: - 20° C to 70° C ( - 4° F to 158° F) Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 263 BTU/Hr.
