Altronix | SKU:
T2VK78D
Altronix T2VK78D TROVE2V2/8DR/10A/ULX/PTC/115
Regular price
$870.77
Unit price
/
Unavailable
Altronix T2VK78D TROVE2V2/8DR/10A/ULX/PTC/115 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix T2VK78D TROVE2V2/8DR/10A/ULX/PTC/115
Regular price
$870.77
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
T2VK78D TROVE2V2/8DR/10A/ULX/PTC/115

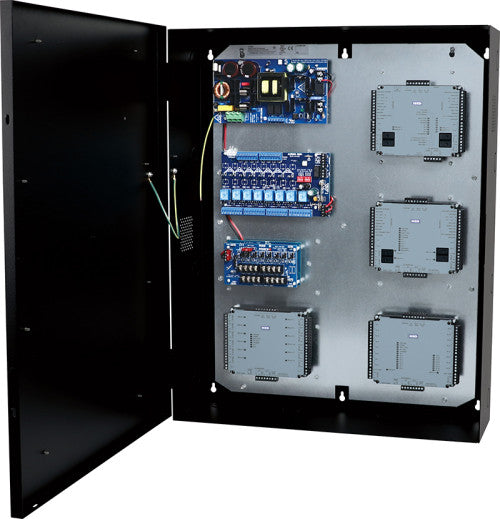

Altronix T2VK78D kit consists of Trove2 enclosure, TV2 VertX®/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 8-output PTC access power controller, one (1) voltage regulator and one (1) 8-output PTC dual input power distribution module.
This kit also accommodates up to four (4) HID Aero/VertX® modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. AL1024ULXB2 Power Supply/Charger Input Voltage: 115VAC 60Hz, 4.2A max. Main Fuse: 5A / 250V. Outputs Voltage: 24VDC. Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 115VAC is present. DC Output: Powered. Battery: Discharged or not connected. PDS8CB Dual Input Power Distribution Module Input Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2. Input PTC: 9A. Outputs Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings PTCs: 2.5A. Indicators (LED) DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC. VR6 Voltage Regulator Input Voltage: 24VDC from AL1024ULXB2. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. ACM8CB Access Power Controller Input Voltage: 24VDC from AL1024ULXB2. Main Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 145 BTU/Hr.
This kit also accommodates up to four (4) HID Aero/VertX® modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. AL1024ULXB2 Power Supply/Charger Input Voltage: 115VAC 60Hz, 4.2A max. Main Fuse: 5A / 250V. Outputs Voltage: 24VDC. Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 115VAC is present. DC Output: Powered. Battery: Discharged or not connected. PDS8CB Dual Input Power Distribution Module Input Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2. Input PTC: 9A. Outputs Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings PTCs: 2.5A. Indicators (LED) DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC. VR6 Voltage Regulator Input Voltage: 24VDC from AL1024ULXB2. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. ACM8CB Access Power Controller Input Voltage: 24VDC from AL1024ULXB2. Main Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 145 BTU/Hr.
