Altronix T2PDK77F24SD PDK 20A 24DR SYS/PTC

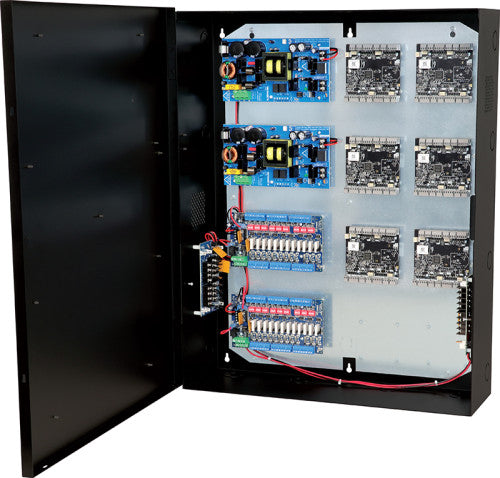

T2PDK77F24SD PDK 20A 24DR SYS/PTC Altronix T2PDK77F24SD kit consists of Trove2 enclosure, TPD2PDK Red™/Altronix backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) twelve (12) PTC protected dual input/output access control modules, two (2) eight (8) PTC protected dual input/output power distribution modules and one (1) 12VDC voltage regulator.
This kit also accommodates up to six (6) red4 modules for up to twenty-four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. Two (2) eFlow104NB Power Supply/Chargers Input Voltage: 120VAC, 60Hz, 9A. Main Fuse: 6.5A / 250V. Output Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 12VDC/12AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACMS8CB Dual Input Access Power Controllers Input Voltage: 24VDC from eFlow104NB and 12VDC from VR6. Input PTC: 9A. Outputs Voltage: 12VDC or 24VDC individually selectable. Twelve (12) selectable 12VDC - 24VDC independently controlled outputs or twelve (12) independently controlled Form “C” relay outputs: a) Fail-Safe and/or Fail-Secure power outputs. b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated. c) Auxiliary power outputs (unswitched). d) Any combination of the above. Any of the twelve (12) PTC protected power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings PTCs: 3A/32V. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Blue LED: FACP disconnect is triggered. Individual voltage LEDs: Green: 12VDC. Red: 24VDC. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow104NB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. Two (2) PDS8CB Dual Input Power Distribution Modules Input Voltage: 12VDC from VR6 and 24VDC from eFlow104NB. Input PTCs: 9A. Outputs Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Outputs Ratings PTCs: 2.5A. Indicators (LED) DC Output: Eight (8) individual output LEDs. Green: 12VDC. Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 290 BTU/Hr.
