Altronix T2KK3F8D TROVE2KA2, 8-DR, 6A, PTC

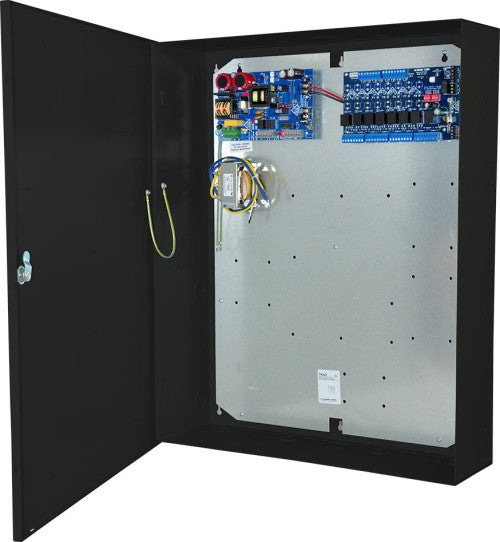

T2KK3F8D TROVE2KA2, 8-DR, 6A, PTC Altronix T2KK3F8D kit consists of Trove2 enclosure, TKA2 Keyscan/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) PTC access power controller, and one (1) 16VAC transformer.
This kit also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow6NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 3.5A max. Input Fuse: 5A / 250V. Output Voltage: Factory set at 24VDC. Current: 6A continuous. Auxiliary: Class 2 power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 12AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. T16100 Transformer Input Voltage: 115VAC, 50/60Hz, 1A. Output Voltage: 16VAC/100VA. 6.25A supply current. ACM8CB Access Power Controller Input Voltage: 24VDC from eFlow6NB. Input Fuse: 10A / 250V. Outputs Class 2 power-limited auto-resettable outputs. Voltage: 24VDC. Eight (8) independently controlled PTC outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Any combination of the above. Output PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 50° C (32° F to 122° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 111 BTU/Hr.
