Altronix T2KHK312D TROVE2KH2/12DR/12V/24V@6A/PTC

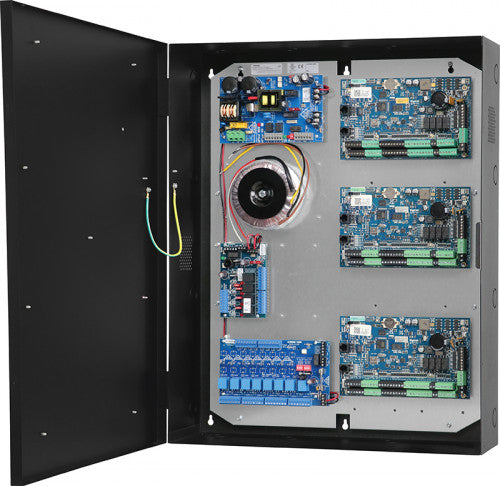

T2KHK312D TROVE2KH2/12DR/12V/24V@6A/PTC Altronix T2KHK312D kit consists of Trove2 enclosure, TKH2 Kantech/Altronix backplane with one (1) 12VDC or 24VDC @ 6A power supply/charger, one (1) eight (8) output PTC access power controller, one (1) four (4) output PTC access power controller and one (1) 16VAC/18VAC transformer.
This kit also accommodate various combinations of Kantech boards for up to twelve (12) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. AL600ULXB Power Supply/Charger Input Voltage: 115VAC, 60Hz, 3.5A max. Fusing: 5A / 250V. Outputs Voltage: 12VDC or 24VDC selectable. Current: 6A @ 12VDC or 24VDC continuous max. Filtered and regulated. Battery Charging Capacity: 7AH / 12VDC (up to 4 within enclosure); 12AH / 12VDC (up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 115VAC is present. DC Output: Powered. Battery: Discharged or not connected. ACM4CB Access Power Controller Input 24VDC from AL600ULXB. Input Fuse: 10A / 32V. Outputs Voltage: 24VDC. Four (4) independently controlled 2A outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs. b) Any combination of the above. Four (4) auxiliary power outputs (unswitched). Outputs Ratings PTCs: 2A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. ACM8CB Access Power Controller Input Voltage: 24VDC from AL600ULXB. Main Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. b) Any combination of the above. Output PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. T1618300K Transformer Input Voltage: 115VAC, 50/60Hz, 2.7A. Output Voltage: 16VAC/300VA (18.7A) or 18VAC/300VA (16.7A). Environmental Temperature Operating: 0° C to 50° C (32° F to 122° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 232 BTU/Hr.
