Altronix T2DK7F16 ALT/DIN RAIL/16DR/FUSE/115

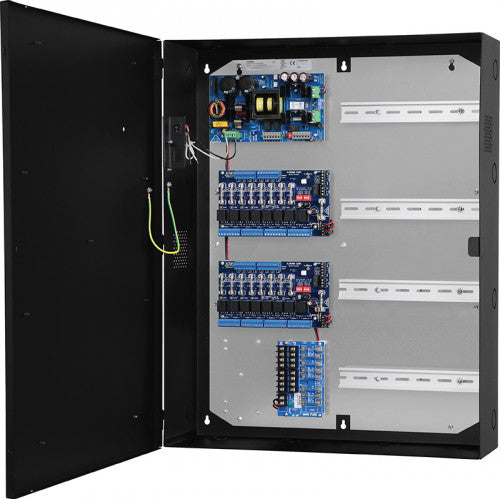

T2DK7F16 ALT/DIN RAIL/16DR/FUSE/115 Altronix T2DK7F16 kit consists of Trove2 enclosure and TDR2 Altronix/DIN Rail backplane with 24VDC @ 10A power supply/charger, sixteen (16) fuse protected access control module and eight (8) fuse protected power distribution module. This kit also accommodates any DIN Rail mountable products for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow104NTB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 4.5A max. Input Fuse: 6.3A/250V Outputs Voltage: 24VDC Current: 10A continuous Auxiliary: 1A (unswitched) Other: Overvoltage protection. Filtered and regulated Battery Charging Capacity: 12VDC/12AH (2 within enclosure), 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts Battery: Form “C” contacts Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge Indicators LED Input: 120VAC is present DC Output: Powered Battery: Discharged or not connected PD8UL Power Distribution Module Input Voltage: 24VDC from eFlow104NTB Outputs Voltage: 24VDC Fuses: 3.5A/250V. Indicators LED Green LED: DC Output Two (2) ACM8 Access Power Controllers Input Voltage: 24VDC from eFlow104NTB Main Fuse: 10A / 250V. Outputs Voltage: 24VDC. Eight (8) 24VDC independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched) c) Any combination of the above Output Fuses: 3.5A / 250V. Indicators (LED) Red LEDs: Outputs are triggered (relays energized) Green LED: FACP disconnect is triggered Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 145 BTU/Hr.
