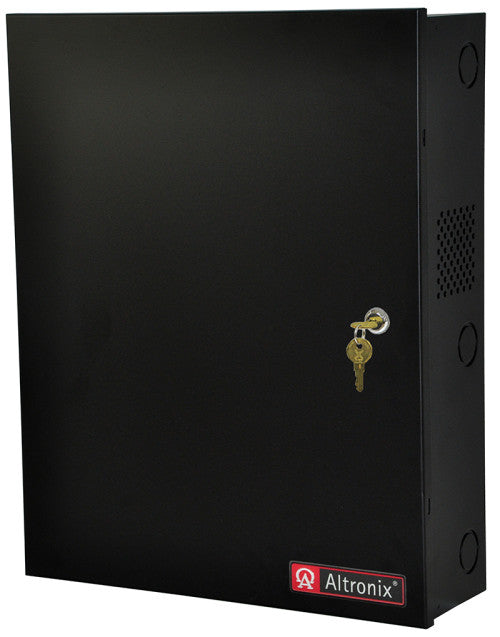

Altronix T1VK34 TROVE1V1/24V@6A/ULX/FUSED

T1VK34 TROVE1V1/24V@6A/ULX/FUSED Altronix T1VK34 kit consists of Trove1 enclosure, TV1 VertX®/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger, one (1) voltage regulator and one (1) dual input fused power distribution module. This kit also accommodates up to two (2) HID Aero/VertX® modules for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. AL600ULXB Power Supply/Charger Input Voltage: 115VAC, 60Hz, 3.5A max. Fusing: 5A/250V. Outputs Voltage: 12VDC or 24VDC selectable. Current: 6A @ 12VDC or 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 7AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators LED Input: 115VAC is present. DC Output: Powered. Battery: Discharged or not connected. ACM4 Access Power Controller Input Voltage: 24VDC from AL600ULXB Input Fuse: 10A /32V Outputs Voltage: 24VDC Four (4) independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A b) Auxiliary power outputs (unswitched) c) Any combination of the above Output Fuses: 3A/32V Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. VR6 Voltage Regulator Input Voltage: 24VDC from AL600ULXB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. PDS8 Dual Input Power Distribution Module Input Voltage: 12VDC from VR6 and 24VDC from AL600ULXB. Main Fuse: 10A/250V. Outputs Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Output Fuses: 3A/32V. Indicators (LED) DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 87 BTU/Hr.
