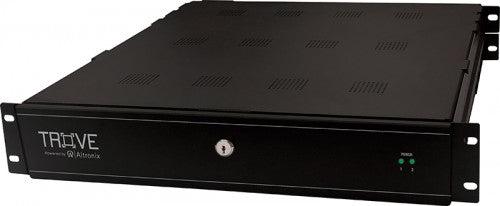

Altronix T1RSH1F4 ALTX/SWH RACK/4DR/FUS/115V

T1RSH1F4 ALTX/SWH RACK/4DR/FUS/115V Altronix T1RSH1F4 kit consists of Trove1R enclosure and TSH1R Altronix & Software House backplane with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger and four (4) output fused access control module. This kit also accommodates various combinations of Software House boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow4RLB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 3.5A. Fusing: 5A / 250V. Output Voltage: 24VDC. Current: 4A continuous. Auxiliary: 1A (unswitched) Other: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. ACM4 Access Power Controller Input Voltage: 24VDC from eFlow4RLB. Input Fuse: 10A /32V. Outputs Voltage: 24VDC. Four (4) independently controlled 2.5A outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A b) Auxiliary power outputs (unswitched) c) Any combination of the above Output Fuses: 3A / 32VDC. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 53 BTU/Hr.
