Altronix T1RAL33F16 ALTRONIX RACK / 16-DOOR SYS

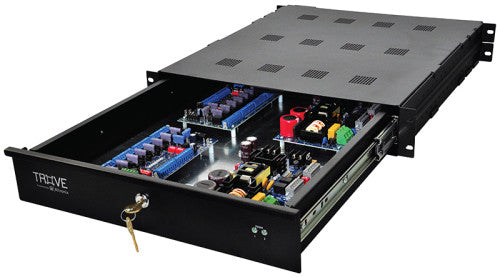

T1RAL33F16 ALTRONIX RACK / 16-DOOR SYS Altronix T1RAL33F16 rack kit is pre-assembled and consists of Trove1AL1R enclosure/backplane with factory installed Altronix power supply/ charger(s) and sub-assemblies. Two (2) eFlow6NB Power Supply/Chargers Input Voltage: 120VAC, 60Hz, 7A max. Fusing: 5A / 250V. Output Voltage: Factory set: one (1) eFlow6NB at 12VDC and one (1) at 24VDC. Current: 6A continuous. Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply boards and ACMS8 Access Power Controller's outputs is 5.3A @ 12VDC and 5.6A @ 24VDC. Auxiliary: Class 2 power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACMS8 Access Power Controllers Input Voltage: 24VDC from one eFlow6NB and 12VDC from another. Fusing: 15A / 32V. Output Voltage: 12 or 24VDC individually selectable. Eight (8) selectable 12VDC or 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs: a) Fail-Safe and/or Fail-Secure power outputs. b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated. c) Auxiliary power outputs (unswitched). d) Any combination of the above. Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Output Fuses: 3A / 32VDC. Indicators (LED's) Red LED: Outputs are triggered (relays energized). Blue LED: FACP disconnect is triggered. Individual voltage LEDs Green: 12VDC Red/Green: 24VDC Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 156 BTU/Hr.
