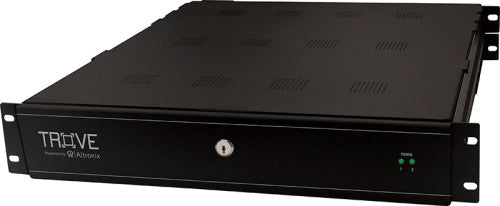

Altronix T1RAL13F8P8 TROVE1AL1R, 12@4A, 24@6A, 115V

T1RAL13F8P8 TROVE1AL1R, 12@4A, 24@6A, 115V Altronix T1RAL13F8P8 Trove Rack kit is pre-assembled and consist of Trove1AL1R enclosure/backplane with factory installed Altronix power supply/chargers and sub -assemblies. eFlow6NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 3.5A max. Fusing: 5A / 250V. Outputs Voltage: Factory set: 24VDC. Current: 6A continuous. Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply board, ACM8 Access Power Controller outputs is 5.6A. Auxiliary: Class 2 power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. eFlow4NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 3.5A max. Main Fuse: 5A / 250V. Outputs Voltage: Factory set: 12VDC. Current: 4A continuous. Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply board, ACM8 Access Power Controller outputs is 5.6A. Auxiliary: Class 2 power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Both Power Supplies Battery Charging Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately).. Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge. Indicators (LED) Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. ACM8 Access Power Controller Input Voltage: 24VDC from eFlow6NB. Input Fuse: 10A / 32V. Outputs Voltage: 24VDC. Eight (8) independently controlled 2.5A outputs: a) Eight (8) Fail-Safe and/or Fail-Secure power outputs. b) Eight (8) dry form “C” 5A rated relay outputs. c) Any combination of the above. Eight (8) auxiliary power outputs (unswitched). Outputs Ratings Fuses: 3A/32VDC. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. PD8UL Power Distribution Module Input Voltage: 12VDC from eFlow4NB. Outputs Class 2 power-limited auto-resettable outputs. Voltage: 12VDC. PTCs: 2.5A. Indicators (LED) Green LED: DC Output. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 115 BTU/Hr.
