T1PDK7F24 TROVE1PD1, 24VDC@10A

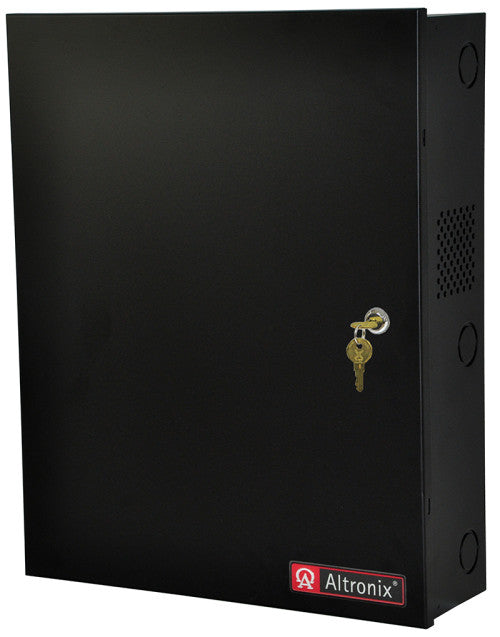

Altronix T1PDK7F24 kit consists of Trove1 enclosure, TPD1 PDK/Altronix backplane with one (1) 24VDC @ 10A power supply/charger. This kit also accommodates up to three (3) PDK PM-07-EIOE-E modules for up to twenty-four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
eFlow104NB Power Supply/Charger
Input
Voltage: 120VAC, 60Hz, 4.5A max.
Main Fuse: 6.5A / 250V.
Outputs
Voltage: 24VDC.
Current: 10A continuous.
Auxiliary: Class 2 power-limited @ 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Charging
Type: Sealed lead acid or gel type.
Fuse Rating: 10A/32VDC.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
Indicators LED
Input: 120VAC is present.
DC Output: Powered.
Environmental
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 128 BTU/Hr.
24VDC: 128 BTU/Hr.
