Altronix T1MK1F4D TROVE1M1, 12/24VDC@4A, PTC

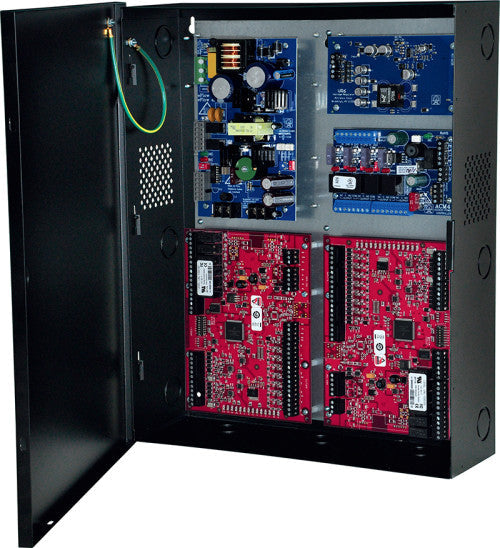

T1MK1F4D TROVE1M1, 12/24VDC@4A, PTC Altronix T1MK1F4D Trove Mercury kit is pre-assembled and consists of Trove1M1 enclosure/ backplane with factory installed Altronix power supply/charger and sub-assemblies. This kit also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt eFlow4NB Power Supply/Charger Input Voltage: 120VAC, 60Hz. Fusing: 5A / 250V. Output Voltage: 24VDC. Current: 4A continuous. Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 7AH / 12VDC (Up to 2 within enclosure); 40 AH / 65 AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow4NB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators (LED) Input: 24VDC is present. Output: Powered. ACM4CB Access Power Controller Input Voltage: 24VDC from eFlow4NB. Fusing: 10A / 32V. Output Voltage: 24VDC. Four (4) independently controlled 2.5A outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs. b) Any combination of the above. Four (4) auxiliary power outputs (unswitched). Outputs Ratings PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 90 BTU/Hr.
