Altronix T1KE3F8V TROVE1 ALTX/KISI 8DR/FUSE/220V

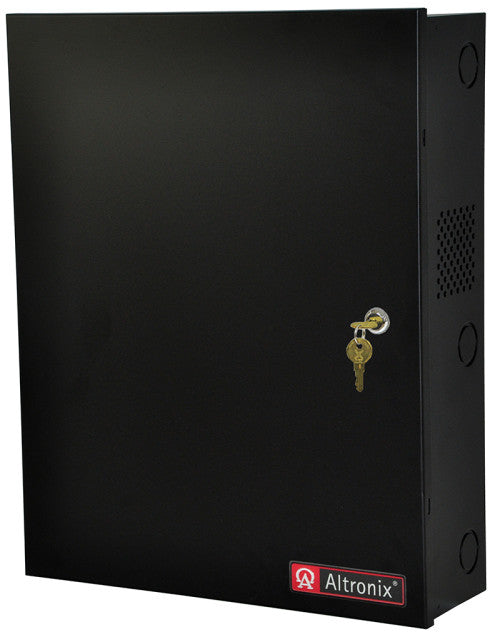

T1KE3F8V TROVE1 ALTX/KISI 8DR/FUSE/220V Altronix T1KE3F8V kit consists of Trove1 enclosure and TDR1 Altronix & Kisi backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger and two (2) four (4) fuse protected output access control modules. This kit also accommodates two (2) Kisi Pro Controllers for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow6NBV Power Supply/Charger Input Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.5A. Main Fuse: 5A / 250V. Output Voltage: 24VDC. Current: 6A continuous. Other: Overvoltage protection. Filtered and regulated. Battery Charging Capacity: 7AH/12VDC (Up to 2 within enclosure) 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 220VAC is present. DC Output: Powered. Battery: Discharged or not connected. Two (2) ACM4 Access Power Controllers Input Voltage: 24VDC from eFlow6NBV. Input Fuse: 10A /32V. Outputs Voltage: 24VDC. Four (4) independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output Fuses: 3A / 32V. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 90 BTU/Hr.
