Altronix T1DK3FA4D ALTX/DIN/6A/4DR/PTC/115

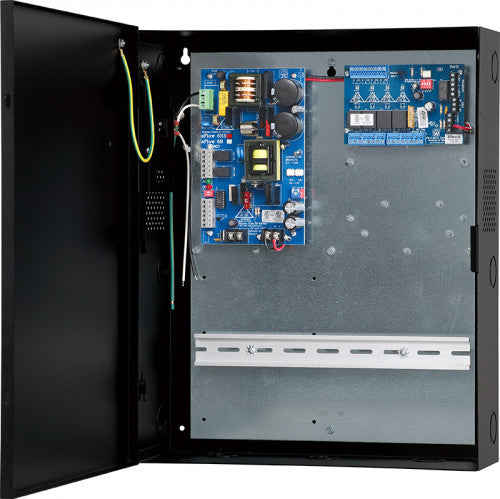

T1DK3FA4D ALTX/DIN/6A/4DR/PTC/115 Altronix T1DK3FA4D kit consists of Trove1 enclosure, TDR1 DIN Rail/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger and one (1) PTC access power controller. This kit also accommodates any DIN Rail mountable products for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow6NTB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 3.5A max. Main Fuse: 5A / 250V. Outputs Voltage: 12VDC or 24VDC selectable Current: 6A continuous max. Auxiliary: Power-limited @ 1A (unswitched) Other: Overvoltage protection. Filtered and regulated Battery Charging Capacity: 7AH/12VDC (2 within enclosure), 40AH/65AH (requires separate enclosure) Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching EOL: 10K Resistor Supervision AC Failure: Form “C” contacts Battery: Form “C” contacts Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge Indicators LED Input: 120VAC is present DC Output: Powered ACM4CB Access Power Controller Input 12VDC or 24VDC from eFlow6NTB Input PTC: 9A. Outputs Voltage: 24VDC. Four (4) independently controlled PTC outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs b) Four (4) auxiliary power outputs (unswitched) c) Any combination of the above Outputs Ratings PTCs: 2.5A. Indicators (LED) Red LEDs: Outputs are triggered (relays energized) Green LED: FACP disconnect is triggered Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 40 BTU/Hr. 24VDC: 77 BTU/Hr.
