Altronix T1CVKT6S TROVE1C1/TANGO1B/FUSE

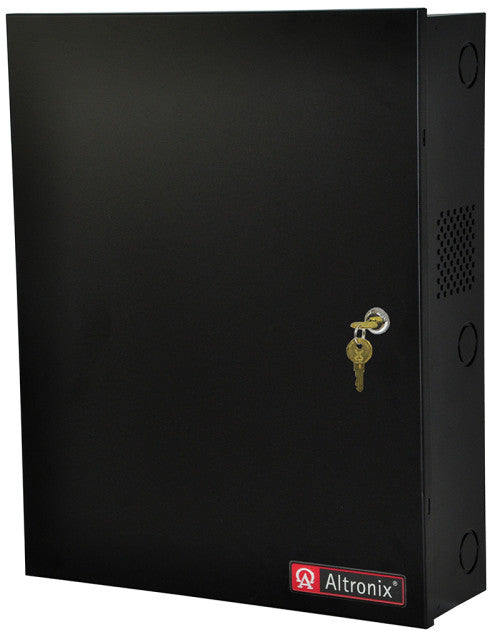

T1CVKT6S TROVE1C1/TANGO1B/FUSE Altronix T1CVKT6S kit consists of Trove1 enclosure, TC1 CDVI/Altronix backplane with one (1) Tango1B PoE Driven Power Supply and one (1) fused access power controller. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to six (6) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. Tango1B PoE Driven Power Supply/Charger Ethernet Input 802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W) Power Output (When using 802.3bt 90W): 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W). Combined output not to exceed 65W. When charging batteries: 12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W) Combined output not to exceed 55W Ethernet Output Pass-through Ethernet Port (data only). Battery Charging Capacity: One (1) LiFePO₄ battery within enclosure Type: LiFePO₄ (lithium iron phosphate only) Failover: Upon AC loss, instantaneous Unique technology allows for single battery to backup 12VDC and/or 24VDC systems (Batteries are sold separately). Supervision Loss of PoE Input. Battery Supervision Indicators (LED) Input: Indicates input voltage is present. Output: Indicates normal operating condition. PoE Type: PoE Class Indicator Supervision: PoE Fail or BAT Fail ACMS8 Dual Input Access Power Controller Inputs Voltage: 12VDC and 24VDC from Tango1B. Current Consumption: 0.6A @ 12V, 0.3A @ 24V with all relays energized. Main Fuse Rating: 15A/32V. Outputs Voltage: 12VDC and/or 24VDC Eight (8) independently controlled fused outputs a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output Fuses: 3A/32V. Indicators LED Red LEDs: Outputs are triggered (relays energized). Blue LED: FACP disconnect is triggered. Individual voltage LEDs Green: 12VDC Red: 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.) 54 BTU/Hr.
