Altronix T1CVK3F4 TROVE1C1, 12/24VDC@6A, FUSED

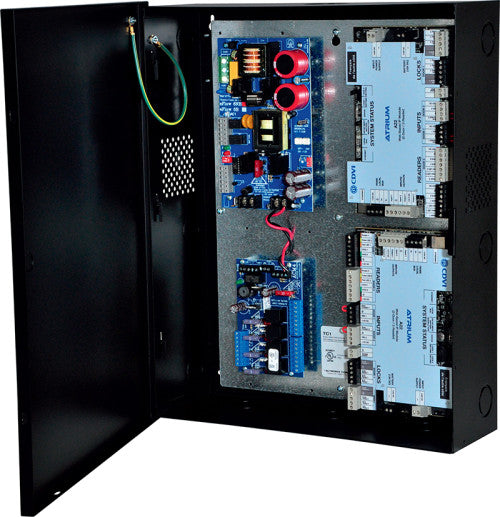

T1CVK3F4 TROVE1C1, 12/24VDC@6A, FUSED Altronix T1CVK3F4 kit consists of Trove1 enclosure, TC1 CDVI/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger and one (1) fused access power controller. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs. eFlow6NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 3.5A max. Fusing: 5A / 250V. Outputs Voltage: 12VDC or 24VDC selectable. Current: 6A continuous max. Auxiliary: Power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 10A @ 32VDC. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED Input: 120VAC is present. DC Output: Powered. ACM4 Access Power Controller Input Voltage: 12VDC or 24VDC from eFlow6NB. Main Fuse: 10A /32V. Outputs Voltage: 24VDC. Four (4) independently controlled 2.5A outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs. b) Four (4) dry form “C” 5A rated relay outputs. c) Any combination of the above. Four (4) auxiliary power outputs (unswitched). Output Fuses: 3A / 32VDC. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 50° C (32° F to 122° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 40 BTU/Hr. 24VDC: 77 BTU/Hr.
