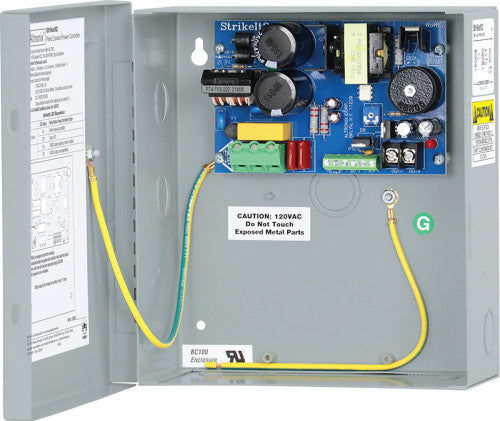

Altronix STRIKEIT2 ONE OUTPUT PANIC DEVICE P/S UL

Altronix STRIKEIT2 ONE OUTPUT PANIC DEVICE P/S UL Strikelt2 operates one (1) 24VDC panic hardware device. It is designed to handle the high current surge panic hardware locking devices demand. In addition, an auxiliary power output provides power for accessory devices such as card readers, keypads, REX PIRs, electronic timers, relays, etc. Input 115VAC 60Hz, 7A. One (1) N/O trigger input. Output One (1) 23.2-24VDC lock output rated up to 16A for 300ms, 0.5A continuous hold current.* One (1) 23.2-24VDC filtered regulated auxiliary output rated @ 0.5A continuous supply current. * * Note: Total combined current for the outputs may not exceed 1A. Battery Charging Battery leads included. Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current 0.3A. When 4AH batteries are used, battery capacity for emergency stand-by is at least a 1/2 hour. (Batteries are sold separately). Visual Indicators Green AC Power LED indicates 115VAC present. Red LED indicates presence of 24VDC. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70ºC ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 151 BTU/Hr. System AC input VA requirement: 805VA.
