Altronix SMP7PMP8CB220 12/24VDC,6A, 8 PTC, 220V P/S
Altronix SMP7PMP8CB220 12/24VDC,6A, 8 PTC, 220V P/S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix SMP7PMP8CB220 12/24VDC,6A, 8 PTC, 220V P/S
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details

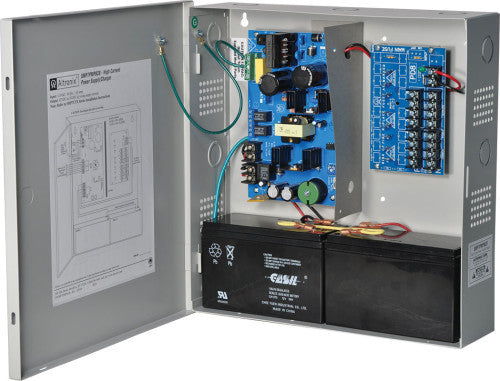

SMP7PMP8CB220 12/24VDC,6A, 8 PTC, 220V P/S SMP7PMP8CB220 converts a 220VAC 50/60Hz input into a regulated 12VDC or 24VDC output via (8) eight PTC protected outputs. Input Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.5A. Output 12VDC or 24VDC selectable output. 6A of continuous supply current output. Eight (8) PTC protected outputs (auto-resettable). Outputs are rated @ 2.5A. Filtered and electronically regulated outputs. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current 0.7A. Zero voltage drop when switching over to battery backup. (Batteries are sold separately). Features Power ON/OFF switch. Supervision AC fail supervision (form "C" contacts). Battery presence and low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 37 BTU/Hr. 24VDC: 74 BTU/Hr. System AC input VA requirement: 330VA.
