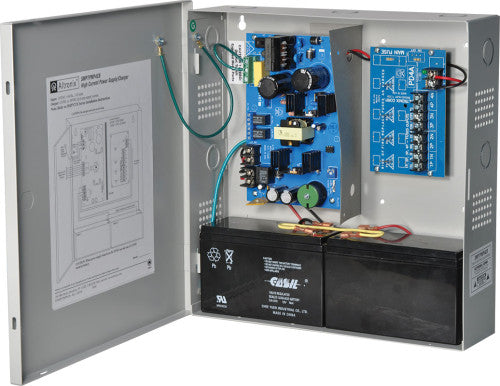

Altronix SMP7PMP4CB220 12/24VDC,6 A ,4 PTC, 220V, P/S

SMP7PMP4CB220 12/24VDC,6 A ,4 PTC, 220V, P/S SMP7PMP4CB220 converts a 220VAC 50/60Hz input into a regulated 12VDC or 24VDC output via four (4) PTC protected outputs. Input Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.5A. Output 12VDC or 24VDC selectable output. 6A of continuous supply current output. Four (4) PTC protected outputs (auto-resettable). Outputs are rated @ 2.5A. Filtered and electronically regulated outputs. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current 0.7A. Zero voltage drop when switching over to battery backup. (Batteries are sold separately). Features Power ON/OFF switch. Supervision AC fail supervision (form "C" contacts). Battery presence and low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 37 BTU/Hr. 24VDC: 74 BTU/Hr. System AC input VA requirement: 330VA.
