Altronix SMP5 6/12/24V 4.0A PS/CHGR

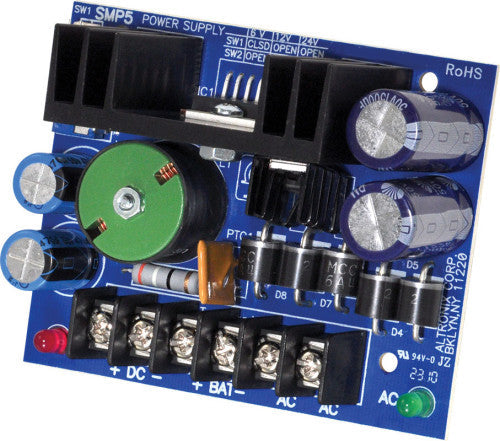

SMP5 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Input
6VDC applications use TP1640.
12VDC applications use T2428100.
24VDC applications use T2428175.
Output
6VDC, 12VDC or 24VDC selectable output.
4A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.3A.
Zero voltage drop when switching over to battery backup.
(Batteries are sold separately).
Visual Indicators
AC input and DC output LED indicators.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
6VDC: 13 BTU/Hr.
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement:
6VDC: 55.2VA.
12VDC/24VDC: 115VA.
Features
Extremely compact design.
Includes battery leads.
Snap Track compatible (order Altronix model number ST3).
