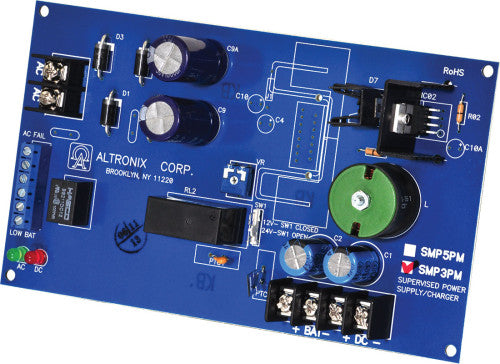

Altronix SMP3PM 12/24VDC, 2.5A SPRVSD PS/CHGR

Altronix SMP3PM 12/24VDC, 2.5A SPRVSD PS/CHGR SMP3PM supervised power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control,security and CCTV system accessories that require additional power. Input 12VDC applications use TP1640, T2428100. 24VDC applications use T2428100. Output 12VDC or 24VDC selectable output. 2.5A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current 0.3A. Zero voltage drop when switching over to battery backup. Battery leads included. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Electrical Temperature: Operating Temperature: 0° C to 49° C (32° F to 120° F). Storage Temperature: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 15 BTU/Hr. 24VDC: 31 BTU/Hr. System AC input VA requirement: 12VDC: 55.2VA. 24VDC: 115VA.
