Altronix SMP3ET SMP3 W/ BC100 &TP1640

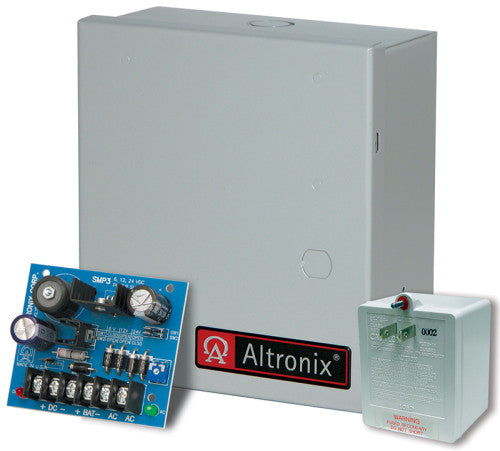

Altronix SMP3ET SMP3 W/ BC100 &TP1640 Altronix SMP3ET power supply/charger converts a low voltage AC input into a 6VDC or 12VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power. Input 16VAC from TP1640 plug-in transformer. Output 6VDC or 12VDC selectable output. 2.5A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current 0.3A. Battery short circuit protection (circuit breaker). (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Features Includes battery leads. Power supply/charger with enclosure and TP1640 plug-in transformer (16.5VAC/40VA). Includes four (4) nylon fasteners. Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 6VDC: 8 BTU/Hr. 12VDC: 15 BTU/Hr. System AC input VA requirement: 6VDC/12VDC: 276VA.
