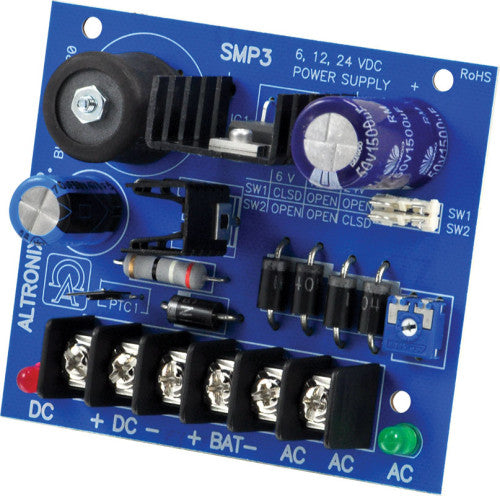

Altronix SMP3 6/12/24V 2.5A PS/CHGR

Altronix SMP3 6/12/24V 2.5A PS/CHGR Altronix SMP3 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power. Input 16VAC to 28VAC. (Voltage Output/Transformer Selection Table). Output 6VDC, 12VDC or 24VDC selectable output. 2.5A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Battery short circuit protection (circuit breaker). (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 6VDC: 8 BTU/Hr. 12VDC: 15 BTU/Hr. 24VDC: 31 BTU/Hr. Additional Features AC input and DC output LED indicators. Extremely compact design. Includes battery leads. Snap Track compatible (order Altronix model number ST3). DIN Rail Mount version available (order Altronix model #DPS3).
