Altronix SMP10PM24P8CB 24VDC 10A,8 PTC Out Cab PS

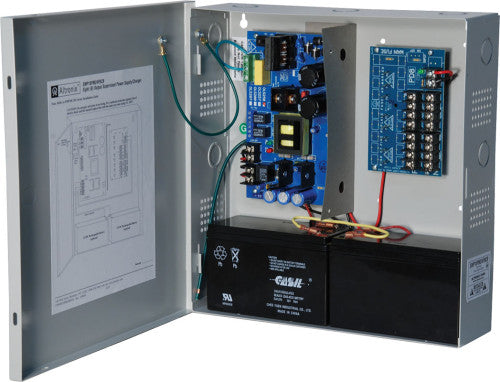

Altronix SMP10PM24P8CB 24VDC 10A,8 PTC Out Cab PS SMP10PM24P8CB is a multi-output power supply/charger that converts a 115VAC/60Hz input into eight (8) 24VDC outputs. Input Input 115VAC, 60Hz, 2.7A. Output 24VDC output. 10A supply current. Eight (8) PTC protected outputs (auto-resettable). Outputs are rated @ 2.5A. Filtered and electronically regulated outputs. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current 0.7A. Zero voltage drop when switching over to battery backup. (Batteries are sold separately). Features Power ON/OFF switch. Supervision AC fail supervision (form "C" contacts). Battery presence and low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 122 BTU/Hr. System AC input VA requirement: 310.5VA.
