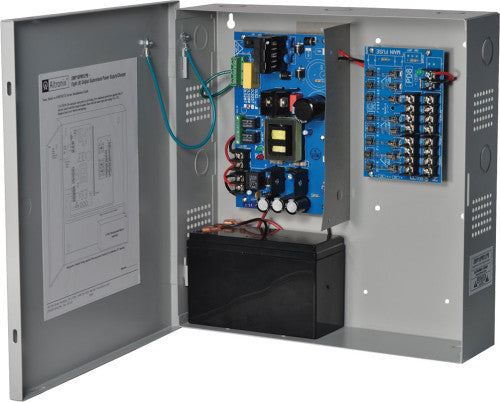

Altronix SMP10PM12P8220 12VDC 10A,8 Fuse 220VAC

SMP10PM12P8220 12VDC 10A,8 Fuse 220VAC SMP10PM12P8220 power supply/charger converts a 220VAC 50/60Hz input into a regulated 12VDC output @ 10A continuous supply current. Input Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.8A. Output 12VDC output. 10A supply current. Eight (8) fuse protected outputs. Outputs are rated @ 3.5A. Filtered and electronically regulated outputs. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current 0.7A. Zero voltage drop when switching over to battery backup. (Batteries are sold separately). Features Power ON/OFF switch. Supervision AC fail supervision (form "C" contacts). Battery presence and low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/Hr. System AC input VA requirement: 176VA.
