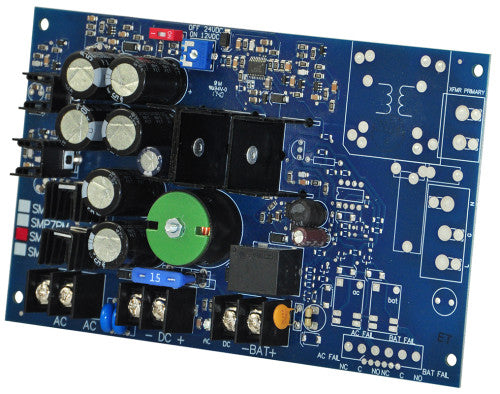

Altronix SMP10 12/24VDC,10A PS Board
SMP10 power supply/charger converts low voltage AC input into 12VDC or 24VDC @ 10A of continuous supply current (refer to specifications). This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power (Voltage Output/Transformer Selection Table).
Input
Input 24/28VAC.
Output
12VDC or 24VDC selectable output.
10A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.7A.
Zero voltage drop when switching over to battery backup.
(Batteries are sold separately).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C (-4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 61 BTU/Hr.
24VDC: 123 BTU/Hr.
