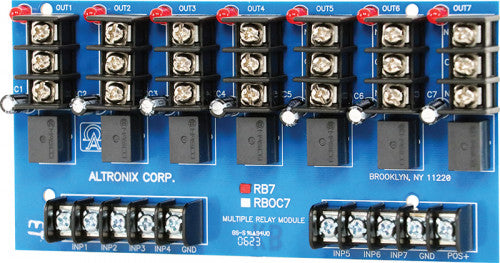

Altronix RB7 SEVEN OUTPUT RELAY MODULE
RB7 Multiple Relay Module incorporates seven (7) isolated form "C" relay outputs which can be activated via positive (+) low current trigger inputs. Typical applications include the switching of alarm devices (eg. annunciator, signals, etc.) from PGM outputs of alarm panels or from another source.
Input Voltage
12VDC or 24VDC operation.
Current draw: 120mA.
Contact Rating
Seven (7) isolated form "C" 1A/120VAC or 28VDC contacts.
Seven (7) independent (3VDC to 24VDC @ 2mA minimum) positive (+) triggers.
Temperature
Operating: -25ºC to 55ºC ( -13ºF to 131ºF).
Storage: -25ºC to 70ºC ( -13ºF to 158ºF).
Relative Humidity: 85% +/– 5%.
