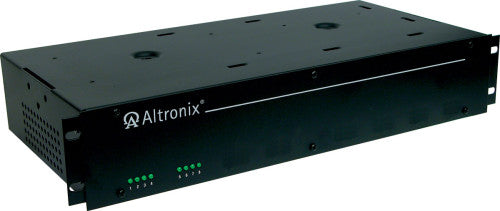

Altronix R615DC8UL 6-15VDC @ 4 A, 8 FUSE Out, UL
Altronix R615DC8UL 6-15VDC @ 4 A, 8 FUSE Out, UL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix R615DC8UL 6-15VDC @ 4 A, 8 FUSE Out, UL
Highlight title
Text to highlight a key feature of your product
Description
Description
Altronix R615DC8UL 6-15VDC @ 4 A, 8 FUSE Out, UL
R615DC8UL provides 6-15VDC distributed via eight (8) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 0.9A.
Output
Eight (8) Class 2 Rated fuse protected outputs.
6-15VDC @ 4A total output current. (0.5A per device, 3.5A max.)
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 12-31 BTU/Hr.
System ACinput VA requirement: 103.5VA.
Features
Eight (8) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Spare fuses provided.
