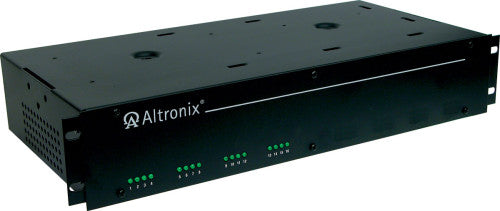

Altronix R615DC616220 6-15VDC 6A 16FUSE RACK P/S 220
Altronix R615DC616220 6-15VDC 6A 16FUSE RACK P/S 220 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix R615DC616220 6-15VDC 6A 16FUSE RACK P/S 220
Highlight title
Text to highlight a key feature of your product
Description
Description
R615DC616220 6-15VDC 6A 16FUSE RACK P/S 220
R615DC616220 provides 6-15VDC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 0.8A.
Output
Sixteen (16) fuse protected outputs.
6-15VDC @ 6A total output current. (0.375A per device, 3.5A max.)
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 18-46 BTU/Hr.
System AC input VA requirement: 176VA.
Features
Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Spare fuses provided.
